802.11a/b/g Dual RF Shielded Test Enclosure — Rack-mount — JRE 0814-2R-A
Pre-configured JRE 0814-2R with two independent chambers, filtered DB9s, filtered power, SMA bulkheads, and whip antennas.
JRE 0814-2R-A specifications
- Inside dimensions
- 9.5" H x 6.5" W x 12.5" D (240 x 165 x 320 mm)
- Outside dimensions
- 11" H x 8" W x 14" D (280 x 205 x 355 mm)
- Isolation
- −100 dB DC to 1 GHz, −95 dB to 3 GHz, −85 dB to 6 GHz
- Weight
- 34 lbs (15.5 kg)
- Shipping Weight
- 41 lbs (18.7 kg)
- Shipping Dimensions
- 23" x 22" x 18" (585 x 560 x 460 mm)
- RF Absorbing Foam Thickness
- 3/4" (19 mm)
- RF Absorbing Foam Temp Rating
- 90 degrees Celsius, UL 94V-0 flammability rating
- RF Feedthru
- 2 each of SMA female bulkheads
- Adapter
- DB9 to RJ45 adapter
- RF Filtered Data Connectors
- Dual DB9's, one with 100 pF filtering, one with 1000 pF filtering
- Power Connection
- 4 terminal barrier strip, 2500 pF filtering
- Whip Antennas
- 2 each of 2.4 - 5.8 GHz whips
- I/O Plate Size
- 7" x 7" (180 x 180 mm), JRE Test "C" size
- Rack Mount
- Standard 19 inch
- Construction
- Rugged welded aluminum
- Door Hardware
- Heavy duty stainless steel hinges
- Vent Type
- Honeycomb shielded vents, fan optional
JRE 0814-2R-A overview
This dual-bay rack enclosure is for a wireless bench whose connector plan already matches the installed interfaces. Instead of beginning with bare plates, both independent chambers arrive with RF, filtered data, filtered power, and antenna connections already populated. That makes the connector list, not just the chamber size, the first fit check.
- Each interior measures 9.5" H x 6.5" W x 12.5" D (240 x 165 x 320 mm).
- Two independent chambers mount in a standard 19 inch rack.
- −100 dB isolation from DC to 1 GHz, −95 dB to 3 GHz, and −85 dB to 6 GHz.

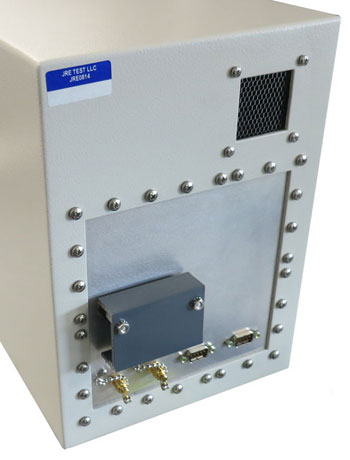

- Each chamber has dual DB9s: one 100 pF filter, one 1000 pF filter, plus a DB9-to-RJ45 adapter.
- Each chamber includes 2 SMA female bulkheads and 2 whips covering 2.4 - 5.8 GHz.
- Each chamber includes a 4 terminal barrier strip with 2500 pF filtering.
- Field-changeable C-size plate measures 7" x 7" (180 x 180 mm).
- $3,550.00 and in stock as a preconfigured enclosure.
I would treat the installed connector set as a gate: preconfiguration saves setup work only when those interfaces match the DUT and instrumentation. If they do, this is the direct route to a matched pair of rack-mounted test spaces. If they do not, start with the bare JRE 0814-2R and specify each plate around the actual signal and power map.
