JRE ANT-211 Broadband 2-11 GHz Log Periodic Antenna

$78.00

2-11 GHz Extremely Broadband Log Periodic Antenna

SKU: JRE ANT-211 Category:

If you have particular questions not answered on the web page, please provide details. Please note that test chambers do not include any RF connectors or interface filters. Any connections to a device inside the chamber have to be suitably filtered in order to maintain shielding isolation. Be sure to specify any connectors or interface filters needed. If you wish a quote, please add your address so we may provide shipping cost.

If you wanted a quote - did you provide your address?

Description

Extremely Broadband Log Periodic Antenna with Female/Male SMA Connector
  • 2-11 GHz wide frequency range covers a multitude of wireless bands
  • Good VSWR across the entire frequency range
  • Antenna terminates in female SMA, includes M-M adapter
  • 1 watt power capability
  • 50 ohms impedance

The JRE-211 utilizes a log periodic design to offer extremely wideband operation across many wireless bands. The antenna itself terminates in a female SMA and a male-male adapter is included to allow use as both a female or male termination. Using the male-male SMA adapter, one can easily connect this antenna to a female SMA bulkhead connector on any of the JRE Test I/O plates.

It's reasonable match of better than 10-15 dB return loss offers repeatable reliable operation with a characteristic impedance of 50 ohms. The antenna is easily mounted with a single hole in the enclosure wall or I/O plate using a female SMA bulkhead connector hardware to attach.

When the antenna is used within a test enclosure, it is operating in the ‘Near Field’ rather than out in free space. In the near field, the antenna’s E and H fields become distorted by nearby objects. These distortions will impact the E field or H field differently, depending upon the absorption or reflection characteristics of the object/environment. When the E and H fields are distorted like this, a proper electromagnetic wave front will not develop. If a proper wave front can develop (usually at a distance of 5 -10 wavelengths away) a radiation pattern of the antenna can be characterized. However, inside a typical JRE test enclosure at typical wireless device frequencies, there is simply not enough volume to have the antenna perform in the far field, thus the non characterization of the antennas radiation pattern. Of course, if the antenna is operated in a large area approaching 'free space' it will have the characteristic radiation pattern of a 3 element yagi antenna, which is consistent with accepted log periodic antenna operation.

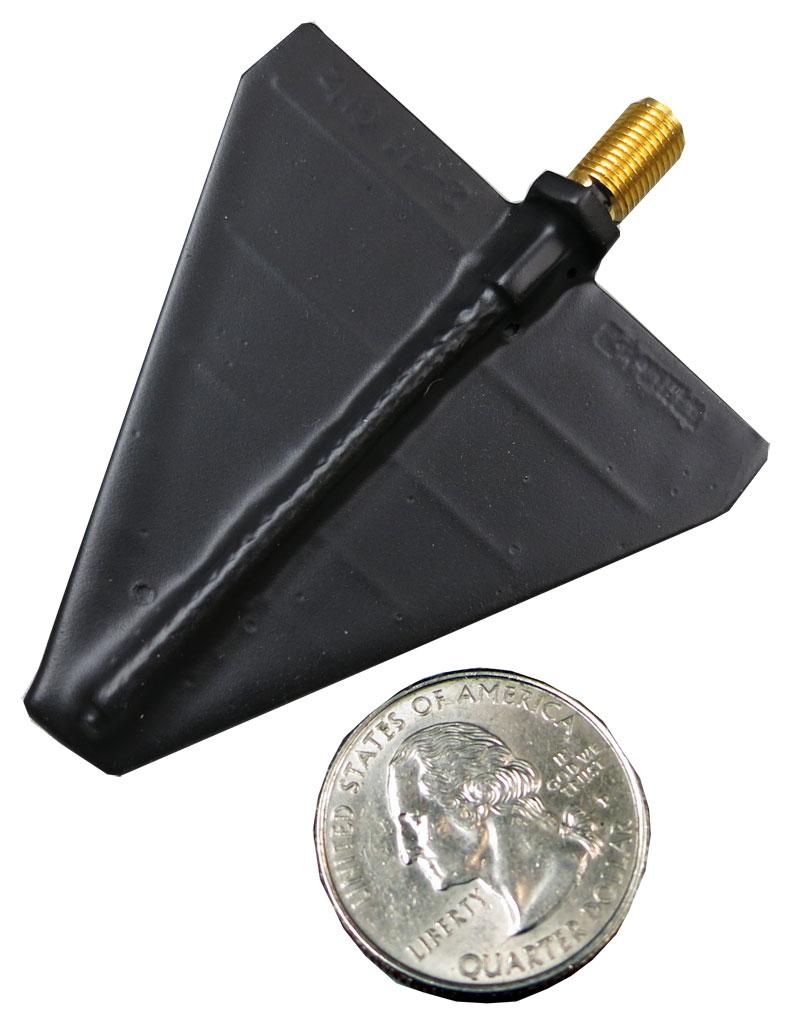

JRE Test ANT-211 broadband 2 to 11 GHz antenna

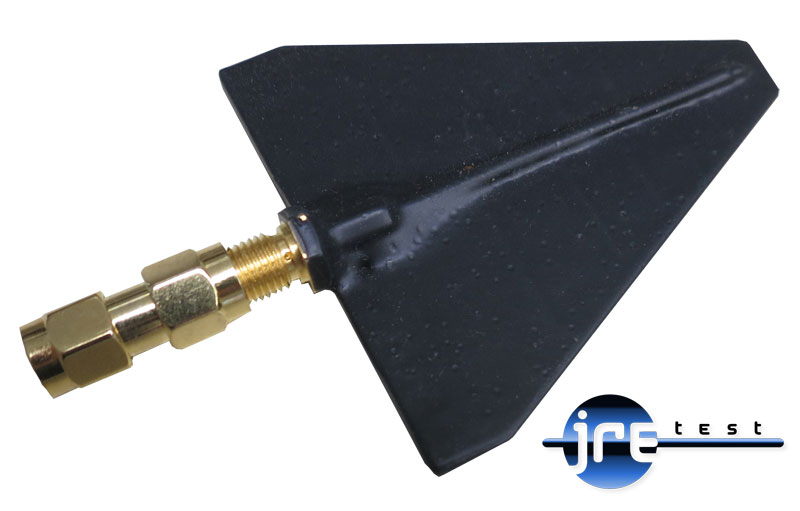

JRE Test ANT-211 broadband 2 to 11 GHz antenna

Features and Benefits

  • Extremely broadband covers many wireless frequency ranges
  • Small size with conformal dielectric coating
  • Good VSWR across the entire frequency range
  • 1 Watt power rating for transmission use
  • 50 Ohm characteristic impedance
  • Includes male-male SMA adapter

Return Loss

-10 to -15 dB from 2 to 11 GHz

Dimensions

3.4 x 2.1" (85 x 55 mm) Including M-M SMA adapter

Connector

SMA female with included M-M adapter to allow either female or male SMA termination
